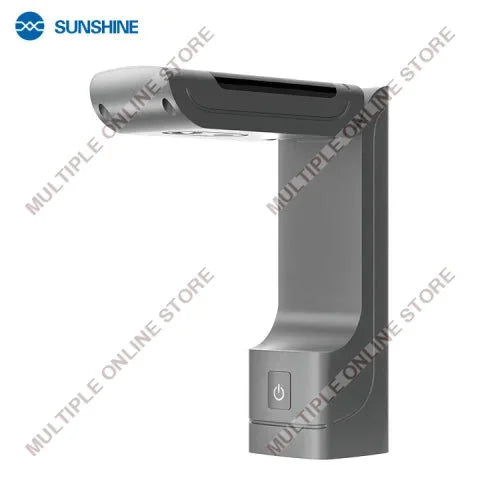

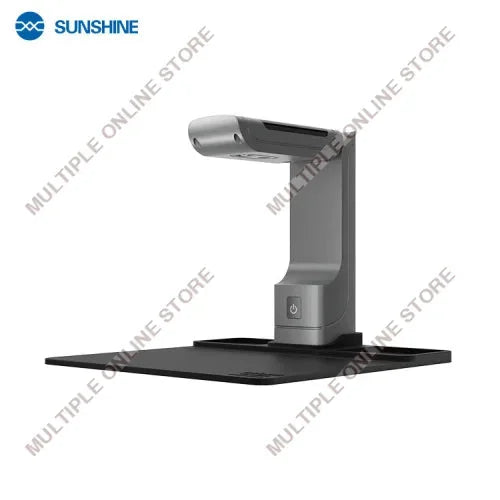

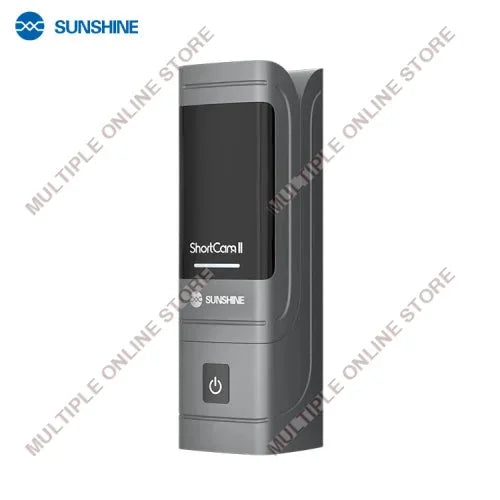

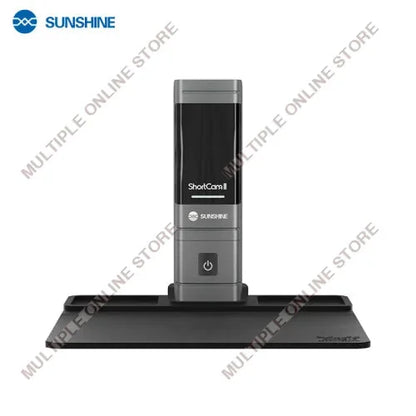

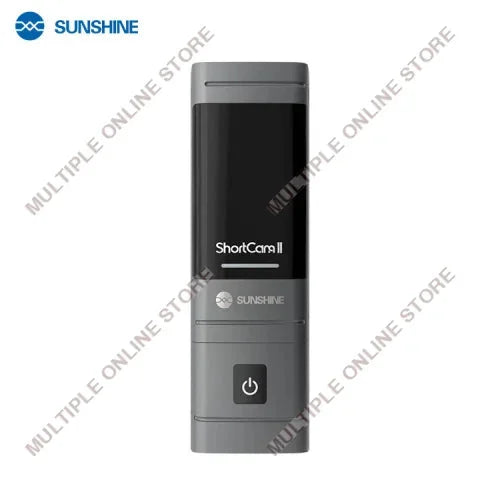

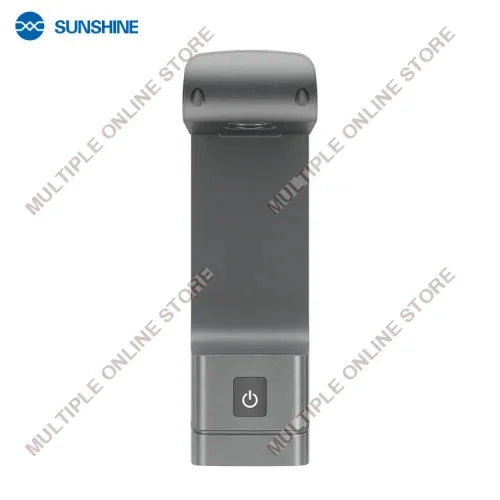

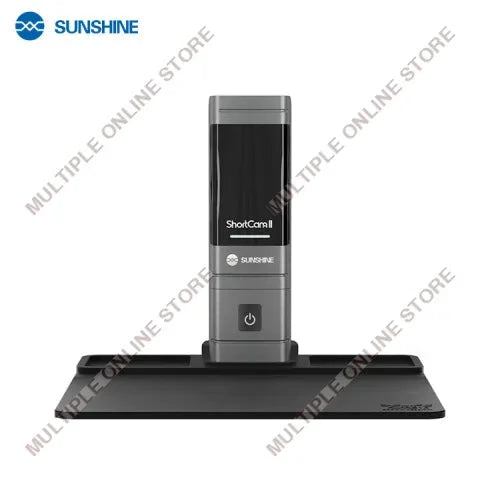

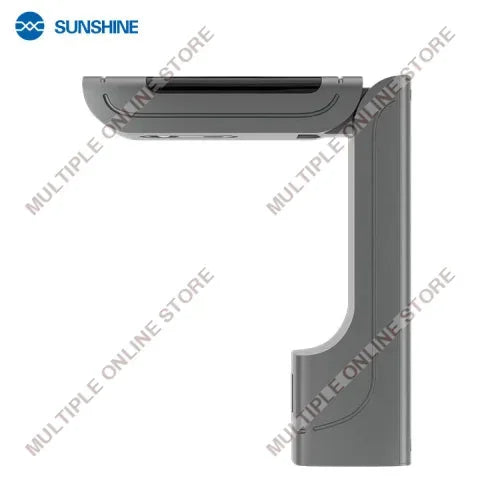

SUNSHINE LC-AD15 PCB ShortCam II Rapid Diagnosis Instrument for Motherboard Fault Repair.
Features:
- Support detection of all models/brands of mobile phone motherboards and other products with motherboards, etc
- 400W HD visible light, high-resolution images not only look delicate but also assist in detection, saving you the need to move the motherboard back and forth
- 256*192 HD thermal imaging, flexibility to zoom in on the details of the motherboard, and easily find tiny components
- A one-click quick check for leakage, red thermal imaging technology, and dual-light fusion algorithm can display the temperature and outline of the motherboard in real-time
- Just click “Quick Check”, and the high-temperature point of leakage will appear immediately
- Flexible folding and portable, small and portable, conforming to the size of the human hand, more ergonomic design, bringing you a more comfortable experience
- Real-time detection and precise positioning, use the power-on power cord to supply power to the motherboard, set the display mode to thermal imaging mode, and enable the software quick-check function to detect faulty parts
- Type-C interface can be connected to a computer, find tiny components at a glance
Specification:
- Brand: SUNSHINE
- Product name: PCB ShortCam II Rapid Diagnosis Instrument
- Model: LC-AD15
- Detector type: Uncooled Vanadium Oxide (VOx)Detectors
- Infrared resolution: 256*192
- Wavelength range: 7.5-13.5um
- Camera angle: 25°*13.5°
- Visible light resolution: 2568*1448
- Display mode: Visible Light/Thermal Imaging/Quick Check
- Connection method: Type-C
- Image storage format: JPC
- Video storage format: MP4
- Input supply voltage: 5V DC
- Power consumption: 2.5W
- Storage temperature range: 20℃~60℃
- Working temperature: 3℃~45℃
- Humidity: 95%relative humidity
- Temperature measurement function: Full-frame temperature measurement/frame temperature measurement
- Temperature measurement distance: 13cm
- Temperature measurement accuracy: ±5℃ or ±5℃ (whichever is the largest)
- Temperature measurement range: -20℃-550℃
- Install: Plug and play, no installation required
- Net weight: About 455g
- Gross weight: About 800g
- Product Size: 48*48*154mm
- Package Size: 72*72*183mm
Package includes:
- 1 x Host
- 1 x Type-C power cord
