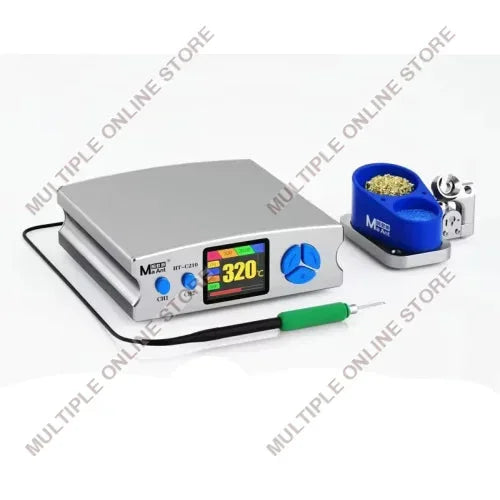

Ma Ant HT-C210 Precision Intelligent Digital Display Soldering Iron Station (72w)

Ma Ant HT-C210 Precision Intelligent Digital Display Soldering Iron Station for PCB SMD BGA Repair.

Features:

• This productis equipped with a C210-018 soldering head as standard
• Memory temperature control, CH1/CH2 sets the common temperature, when working, you can reach the set temperature by simply pressing
• The temperature rises rapidly, the tin is melted in 2 seconds, the temperature compensation is strong, and the temperature recovery is fast
• The device adopts 32-bit high-performance chip to precisely control the temperature so that the temperature error is controlled within 2 degrees
• The dormancy line connects the host and the seat. The handle is removed and put down for automatic induction, the handle is put down for automatic dormancy
• The handle is automatically heated to the set temperature for intelligent dormancy and operation
• Thermal insulation silicone sleeve cotton sleeve, double protection, fire resistance, anti-scalding, and anti-skid, safe to use
• The multifunctional seat is designed with additional holes for the placement of the soldering iron head to better clean the workbench and replace the soldering iron head
• The heating core integrated soldering head can be disassembled and replaced in 2 seconds, which is convenient and fast, with seamless design, fast heat conduction, oxidation resistance, and easy to tin
• Good display effect rich colors, high-end atmosphere
• No pressure for solder joints with a constant temperature of 30~500°C, supporting the wide voltage 110V-220V of all countries in the world
• A high-performance chip is used to intelligently control sleep and wake up to bid farewell to tedious work and improve work efficiency
• One-hand control, easy to carry, convenient to travel, solves the problem of traditional welding travel is difficult to carry

Specification:

• Host: Ma Ant HT-C210
• Power supply: 120W
• Input AC voltage: AC 100V~240V
• Input DC voltage: DC 12V
• Heating power: 72W
• Resistance of soldering iron head to the ground: <2Ω
• Solder head-to-ground voltage: <2mV
• Temperature control range: 30℃-500℃
• Temperature control mode: Key temperature control
• Host size: 143*142*42mm
• Package size: 210*173*111mm
• Display screen size: 45*38mm
• Power consumption: 72W
• Standard: C210 soldering
• Nozzle: Iron blade K
• Handle material: Silica gel
• Handle line length: About 150cm

Package includes:

• 1 x Host
• 1 x Soldering Iron Tip (K)
• 1 x Baseline
• 1 x Dormant line
• 1 x Handle
• 1 x Base
• 1 x Steel Ball
• 1 x Sponge
• 1 x Power Cord
